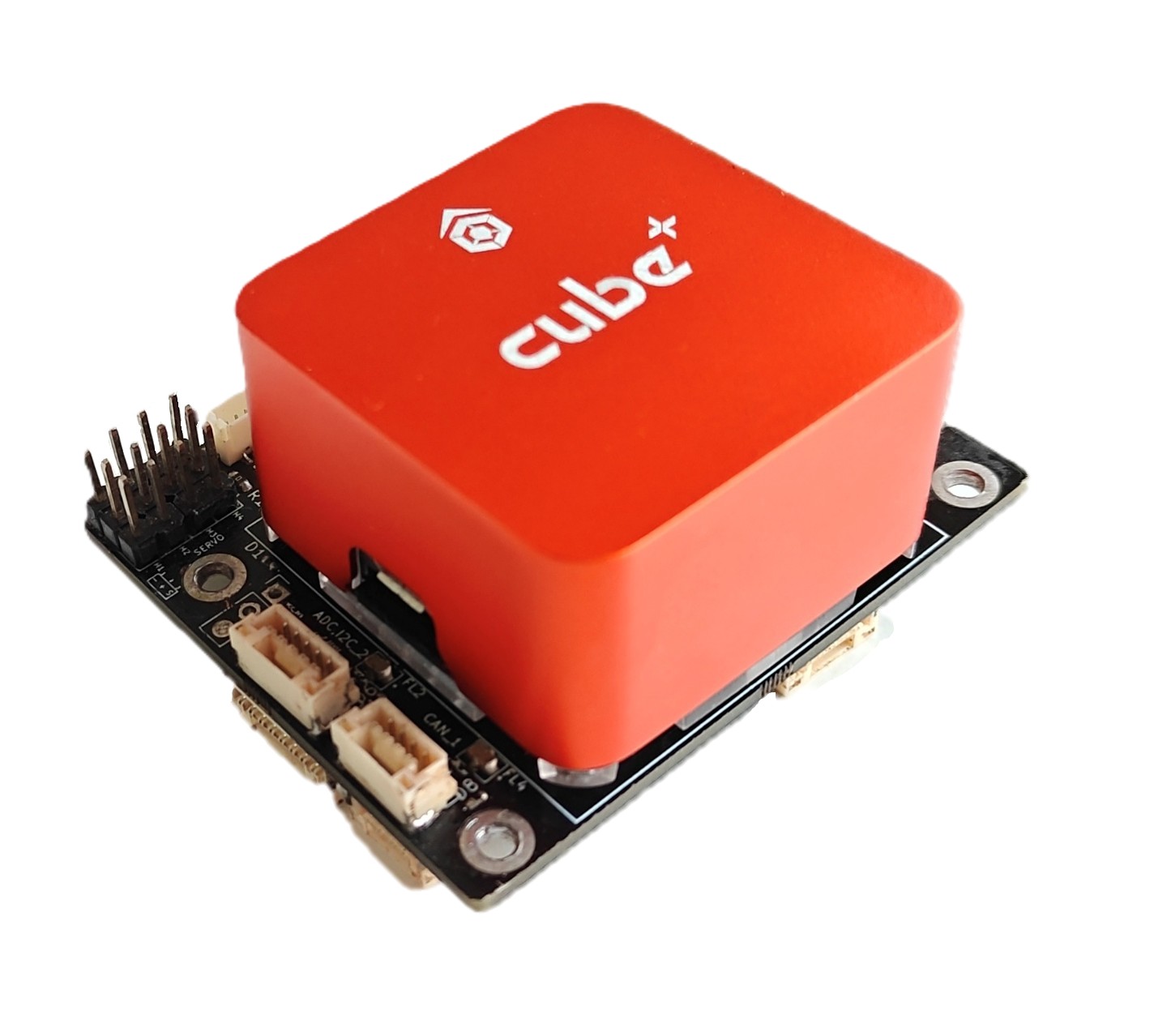

VECROS MINI CC (Cube Carrier) Board with Cube Orange Plus Module

Features​

  • Fully compatible with CubePilot Orange/Orange Plus/Black/Purple
  • Pixhawk Autopilot Connector Standard
  • Dedicated ports for Radio Telemetry and RC input
  • Dedicated UART and SBUS_OUT port for Gimbal Payload
  • Dedicated combined CAN and UART port interface for companion computer (eg. VECROS JETCORE)
  • Compatible connectors for 4IN1 ESC and individual ESCs
note

This carrier board does not have dual power supply and support for cubepilot PSM

MINI CC Board's Connectors​

USB Port​

  • 1x USB2 Port
    • 1x 4 pin JST-GH

Peripheral Ports​

  • 1x UART & CAN Port (UART2 & CAN2)
    • 6 Pin JST-GH
  • 2x CAN Port(CAN1 & CAN2)
    • 2x 4 Pin JST-GH
  • 1x GPS Port (UART3 & I2C)
    • 8 Pin JST-GH
  • 1x I2C Port
    • 4 Pin JST-GH
  • 1x Payload Port (UART4 & SBUS_OUT)
    • 5 Pin JST-GH
  • 1x Radio Telemetry Port (UART2)
    • 4 Pin JST-GH
  • 1x PPM Port
    • 3 Pin JST-GH
    • 3 Pin Header
  • 1x AUX Port
    • 8 Pin JST-GH
  • 1x I2C & ADC Port
    • 5 Pin JST-GH
  • 1x I/O Port
    • 10 Pin JST-SH
    • 2x 3X4 Header
  • 1x Debug Port (FMU-IO Debug)
    • 10 Pin JST-GH
  • 1x Spectrum Radio Port
    • 3 Pin Header

Input Power​

  • Connector: 6 Pin Molex ClickMate
  • Voltage Rating: 5V
