JETCORE

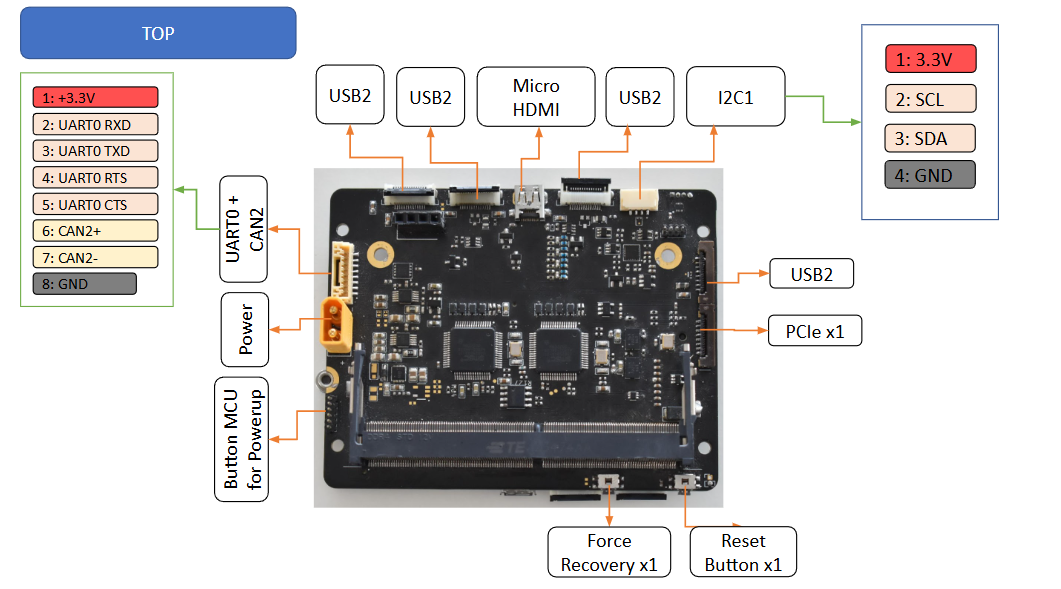

Micro HDMI Port
Detailed HDMI Pinout
| Pin | Signal | Voltage |
|---|
| 1 | HDMI_HOTPLUG | +5V |
| 2 | NC | - |
| 3 | HDMI_TX2+ | - |
| 4 | GND | GND |
| 5 | HDMI_TX2- | - |
| 6 | HDMI_TX1+ | - |
| 7 | GND | GND |
| 8 | HDMI_TX1- | - |
| 9 | HDMI_TXC+ | - |
| 10 | GND | GND |
| 11 | HDMI_TXC- | - |
| 12 | HDMI_TX0+ | - |
| 13 | GND | GND |
| 14 | HDMI_TX0- | - |
| 15 | HDMI_CEC | +3.3V |
| 16 | GND | GND |
| 17 | HDMI_SCL | +3.3V |
| 18 | HDMI_SDA | +3.3V |
| 19 | GND | GND |

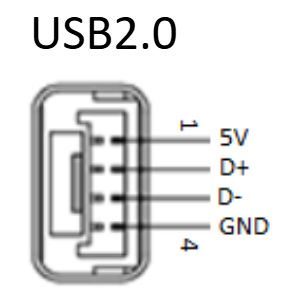

USB2.0 Port
| Pin | Signal | Voltage |
|---|
| 1(red) | VBUS (in) | +5V |
| 2(black) | DP | +3.3V |
| 3(black) | DM | +3.3V |
| 4(black) | GND | GND |
USB3.0 Port
| Pin | Signal | Voltage |
|---|
| 1(red) | VBUS (in) | +5V |
| 2(black) | VBUS (in) | +5V |
| 3(black) | TX+ | - |
| 4(black) | TX- | - |
| 5(black) | GND | GND |
| 6(black) | GND | GND |
| 7(black) | DM | +3.3V |
| 8(black) | DP | +3.3V |
| 9(black) | GND | GND |
| 10(black) | GND | GND |
| 11(black) | RX+ | - |
| 12(black) | RX- | - |
| 13(black) | GND | GND |
| 14(black) | GND | GND |
Tel1, CAN2 Port
| Pin | Signal | Voltage |
|---|
| 1(red) | VCC (out) | +3.3V |
| 2(black) | TX1(out) | +3.3V |
| 3(black) | RX1(in) | +3.3V |
| 4(black) | CTS1(in) | +3.3V |
| 5(black) | RTS1(out) | +3.3V |
| 6(black) | CANH2 | +3.3V |
| 7(black) | CANL2 | +3.3V |
| 8(black) | GND | GND |

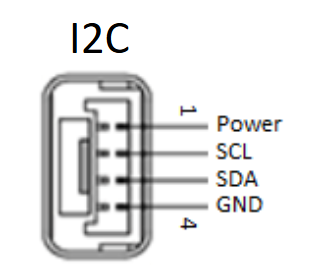

I2C1 Port
| Pin | Signal | Voltage |
|---|
| 1(red) | VCC | +3.3V |
| 2(black) | SCL1 | +3.3V |
| 3(black) | SDA1 | +3.3V |
| 4(black) | GND | GND |
USB2.0 Port
| Pin | Signal | Voltage |
|---|
| 1(red) | VBUS (in) | +5V |
| 2(black) | VBUS (in) | +5V |
| 3(black) | NC | - |
| 4(black) | NC | - |
| 5(black) | GND | GND |
| 6(black) | GND | GND |
| 7(black) | DM | +3.3V |
| 8(black) | DP | +3.3V |
| 9(black) | GND | GND |
| 10(black) | GND | GND |
| 11(black) | NC | - |
| 12(black) | NC | - |
| 13(black) | GND | GND |
| 14(black) | GND | GND |
CAN2 Port
| Pin | Signal | Voltage |
|---|
| 1(red) | VCC (out) | +5V |
| 2(black) | CANH2 | +3.3V |
| 3(black) | CANL2 | +3.3V |
| 4(black) | GND | GND |
ETH-P1 Port
| Pin | Signal | Voltage |
|---|
| 1(red) | TX_D3+ | - |
| 2(black) | TX_D3- | - |
| 3(black) | TX_D2+ | - |
| 4(black) | TX_D2- | - |
| 5(black) | TX_D1+ | - |
| 6(black) | TX_D1- | - |
| 7(black) | TX_DO+ | - |
| 8(black) | TX_DO- | - |

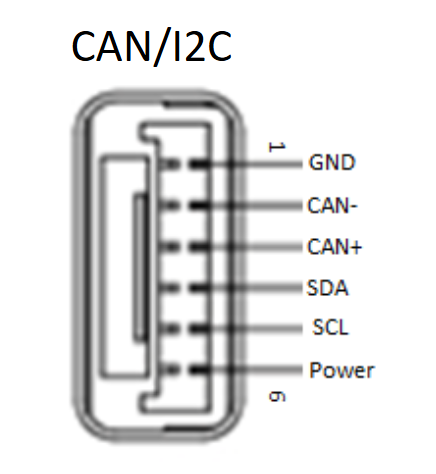

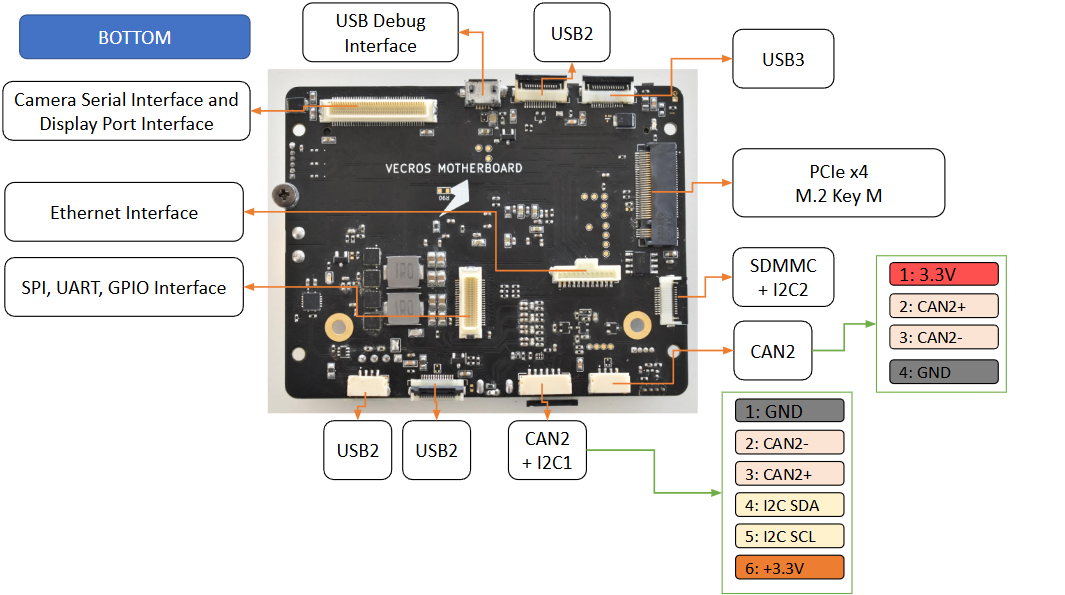

I2C1, CAN2 Port
| Pin | Signal | Voltage |
|---|
| 1(black) | GND | GND |
| 2(black) | CANL2 | +3.3V |
| 3(black) | CANH2 | +3.3V |
| 4(black) | SDA1 | +3.3V |
| 5(black) | SCL1 | +3.3V |
| 6(red) | VCC | +3.3V |
PCIE1.0 Port
PCIE1.0 Port
| Pin | Signal | Voltage |
|---|
| 1(red) | VBUS (in) | +5V |
| 2(red) | VBUS (in) | +5V |
| 3(black) | GND | GND |
| 4(red) | PCIE1.0_TXO- | - |
| 5(black) | GND | GND |
| 6(black) | PCIE1.0_TXO+ | - |
| 7(black) | GND | GND |
| 8(black) | PCIE1.0_CLK+ | - |
| 9(black) | GND | GND |
| 10(black) | PCIE1.0_CLK+ | - |
| 11(black) | GND | GND |
| 12(black) | PCIE1.0_RXO+ | - |
| 13(black) | PCIE1.0_CLK_nREQ | - |
| 14(black) | PCIE1.0_RXO- | GND |
| 15(black) | PCIE1.0_nRST | - |
| 16(black) | PCIE1.0_WAKE | - |
Vertical USB2.0 Port
| Pin | Signal | Voltage |
|---|
| 1(red) | VBUS (in) | +5V |
| 2(red) | VBUS (in) | +5V |
| 3(red) | VBUS (in) | +5V |
| 4(red) | VBUS (in) | +5V |
| 5(red) | VBUS (in) | +5V |
| 6(black) | GND | GND |
| 7(black) | VBUS (in) | +5V |
| 8(black) | USB_HUB2_P3_DM | +3.3V |
| 9(black) | NC | - |
| 10(black) | USB_HUB2_P3_DP | +3.3V |
| 11(black) | NC | - |
| 12(black) | NC | - |
| 13(black) | NC | - |
| 14(black) | GND | GND |
| 15(black) | NC | - |
| 16(black) | GND | GND |
GPIO, I2C1, I2S0/1, SPI0/1 AND UART1 Ports
GPIO, I2C1, I2S0/1, SPI0/1 AND UART1 Board-to-Board
| Pin | Signal | Voltage |
|---|
| 1 | VDD | +3.3V |
| 2 | VDD | +3.3V |
| 3 | VDD | +3.3V |
| 4 | VDD | +3.3V |
| 5 | SPI1_MOSI | +3.3V |
| 6 | UART1_CTS | +3.3V |
| 7 | SPI1_SCK | +3.3V |
| 8 | UART1_RTS | +3.3V |
| 9 | SPI1_MISO | +3.3V |
| 10 | UART1_RXD | +3.3V |
| 11 | SPI1_CS0 | +3.3V |
| 12 | UART1_TXD | +3.3V |
| 13 | SPI1_CS1 | +3.3V |
| 14 | I2S0_SCLK | +3.3V |
| 15 | GND | GND |
| 16 | I2S0_LRCK | +3.3V |
| 17 | GPIO13 | |
| 18 | I2S0_SDIN | +3.3V |
| 19 | I2S1_SCLK | +3.3V |
| 20 | GND | GND |
| 21 | I2S1_LRCK | +3.3V |
| 22 | I2S0_SDOUT | +3.3V |
| 23 | I2S1_SDIN | +3.3V |
| 24 | I2C1_SDA | +3.3V |
| 25 | I2S1_SDOUT | +3.3V |
| 26 | I2C1_SCL | +3.3V |
| 27 | GND | GND |
| 28 | GND | GND |
| 29 | GPIO9_TEMP_ALERT | |
| 30 | SPIO_CS1 | +3.3V |
| 31 | GPIO7_IMU_INIT1 | |
| 32 | SPIO_CS0 | +3.3V |
| 33 | GPIO1_IMU_INIT2 | |
| 34 | SPIO_MISO | +3.3V |
| 35 | GPIO12 | |
| 36 | SPIO_SCK | +3.3V |
| 37 | GPIO11 | |
| 38 | SPIO_MOSI | +3.3V |
| 39 | GND | GND |
| 40 | GND | GND |
MIPI CSI & Display Port
MIPI CSI & Display Port Board-to-Board
| Pin | Signal | Voltage |
|---|
| 1 | VDD_3V3 | +3.3V |
| 2 | VDD_5V | +5V |
| 3 | VDD_3V3 | +3.3V |
| 4 | VDD_5V | +5V |
| 5 | CAMO_PWDN | |
| 6 | CSIS_D1_+ | |
| 7 | DPO_AUX_+ | |
| 8 | CSIS_D1_- | |
| 9 | DPO_AUX_- | |
| 10 | CSIS_CLK_+ | |
| 11 | DPO_HPD | |
| 12 | CSIS_CLK- | |
| 13 | CAMO_MCLK | |
| 14 | CSIS_DO_+ | |
| 15 | CAM1_MCLK | |
| 16 | CSIS_DO_- | |
| 17 | GND | GND |
| 18 | GND | GND |
| 19 | GND | GND |
| 20 | GND | GND |
| 21 | CAM_MUX_SEL | |
| 22 | CAM1_PWDN | |
| 23 | CAM1_I2C_SCL | +3.3V |
| 24 | CS14_D3+ | |
| 25 | CAM1_I2C_SDA | +3.3V |
| 26 | CS14_D3- | |
| 27 | DPO_TX_D3+ | |
| 28 | CSI4_D1+ | |
| 29 | DPO_TX_D3- | |
| 30 | CS14_D1- | |
| 31 | GND | GND |
| 32 | GND | GND |
| 33 | GND | GND |
| 34 | GND | GND |
| 35 | DPO_TX_D2+ | |
| 36 | CS14_CLK+ | |
| 37 | DPO_TX_D2- | |
| 38 | CS14_CLK- | |
| 39 | DPO_TX_D1+ | |
| 40 | CS14_DO+ | |
| 41 | DPO_TX_D1 | |
| 42 | CS14_DO- | |
| 43 | DPO_TX_D2+ | |
| 44 | CS14_D2- | |
| 45 | DPO_TX_DO- | |
| 46 | CS14_D2- | |
| 47 | GND | GND |
| 48 | GND | GND |
| 49 | GND | GND |
| 50 | GND | GND |
| 51 | CS13_D1+ | |
| 52 | CS14_D1- | |
| 53 | CS13_D1- | |
| 54 | CS14_D1- | |
| 55 | CS13_CLK+ | |
| 56 | CS12_CLK+ | |
| 57 | CS13_CLK- | |
| 58 | CS12_CLK- | |
| 59 | CS13_DO+ | |
| 60 | CS12_DO+ | |
| 61 | CS13_DO- | |
| 62 | CS12_DO- | |
| 63 | CS10_D1+ | |
| 64 | CS10_D1- | |
| 65 | CS11_D1+ | |
| 66 | CS11_D1- | |
| 67 | CS10_CLK+ | |
| 68 | CS10_CLK- | |
| 69 | CS10_CLK+ | |
| 70 | CS10_CLK- | |
| 71 | GND | GND |
| 72 | GND | GND |
| 73 | CS10_DO+ | |
| 74 | CS10_DO- | |
| 75 | CS11_DO+ | |
| 76 | CS11_DO- | |
| 77 | VDD_3V3 | +3.3V |
| 78 | VDD_5V | +5V |
| 79 | VDD_3V3 | +3.3V |
| 80 | VDD_5V | +5V |
