Dimension & Weight

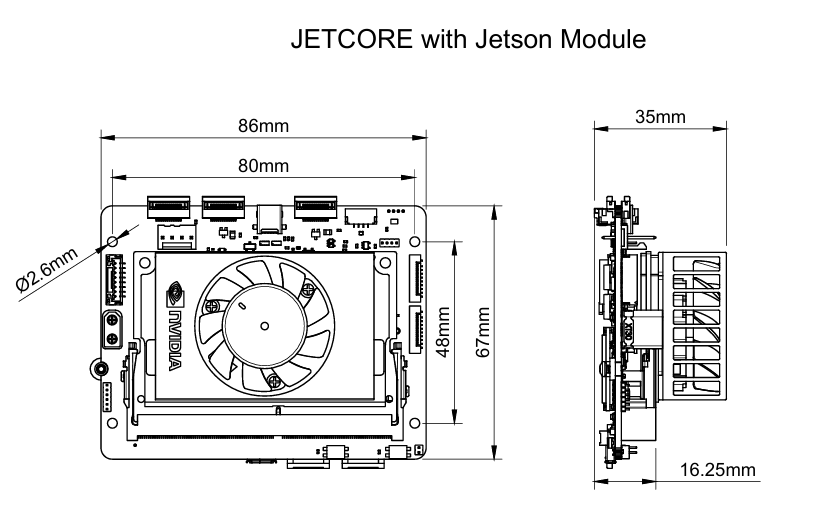

Dimensions​

  • Without Jetson Module: 86 x 67 x 18 mm
  • With Jetson Module + Heatsink/Fan: 86 x 67 x 35 mm

Dimension Dimension

Weight​

  • Without Jetson and Flight Controller: 40 grams (approx.)
  • With Jetson, no Heatsink or Flight Controller: 65 grams (approx.)
  • With Jetson and Heatsink, no Flight Controller: 130 grams (approx.)
