Dimension & Weight

Dimensions​

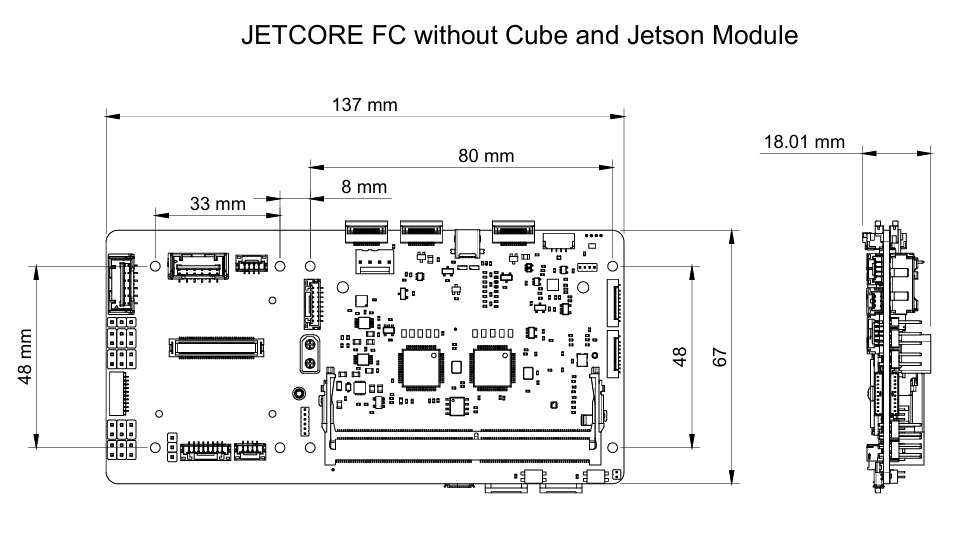

  • Without Jetson and Cube Orange Module: 137 x 67 x 18 mm

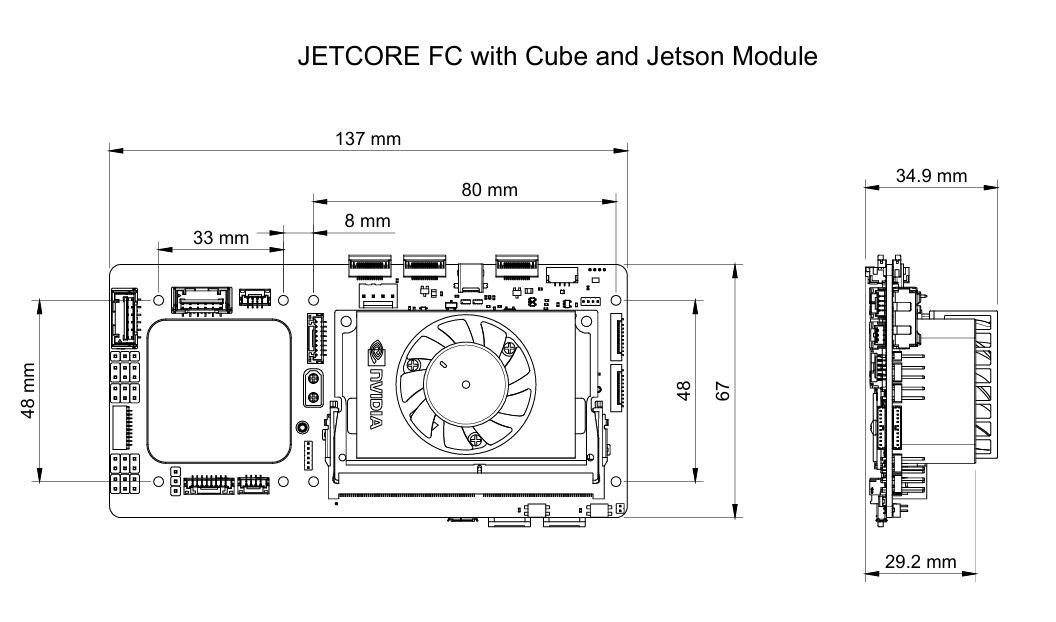

  • With Jetson and Cube Orange Module + Heatsink/Fansink: 137 x 67 x 35 mm

Dimension Dimension

Weight​

  • Without Jetson and Flight Controller: 56 grams (approx.)
  • With Jetson, Cube Orange Module and SSD, no Heatsink: 105 grams (approx.)
  • With Jetson Module, Cube Orange Module, SSD and Fansink: 180 grams (approx.)
